7.0 How do I set up my Cardiac Science Powerheart G5 once I get it out of the box? : St. John Ambulance

7.0 How do I set up my Cardiac Science Powerheart G5 once I get it out of the box? Print

Modified on: Mon, Apr 16, 2018 at 4:30 PM

Setting up the Cardiac Science Powerheart G5 (semi-automated or fully automatic) is very easy.

In the box, there will be a user manual, CD which contains an electronic version of the user manual and a program to interpret data downloaded from the AED after a rescue, and a "Getting Started" card.

One of the AED pads should be connected to the AED already. The battery of the AED is separate from the device. Insert the battery into the back of the AED device (the leads of the battery should match with the leads of the device. There should be a click to indicate that the battery is inserted properly. The Rescue Ready green indicator will activate, and the AED is ready to go.

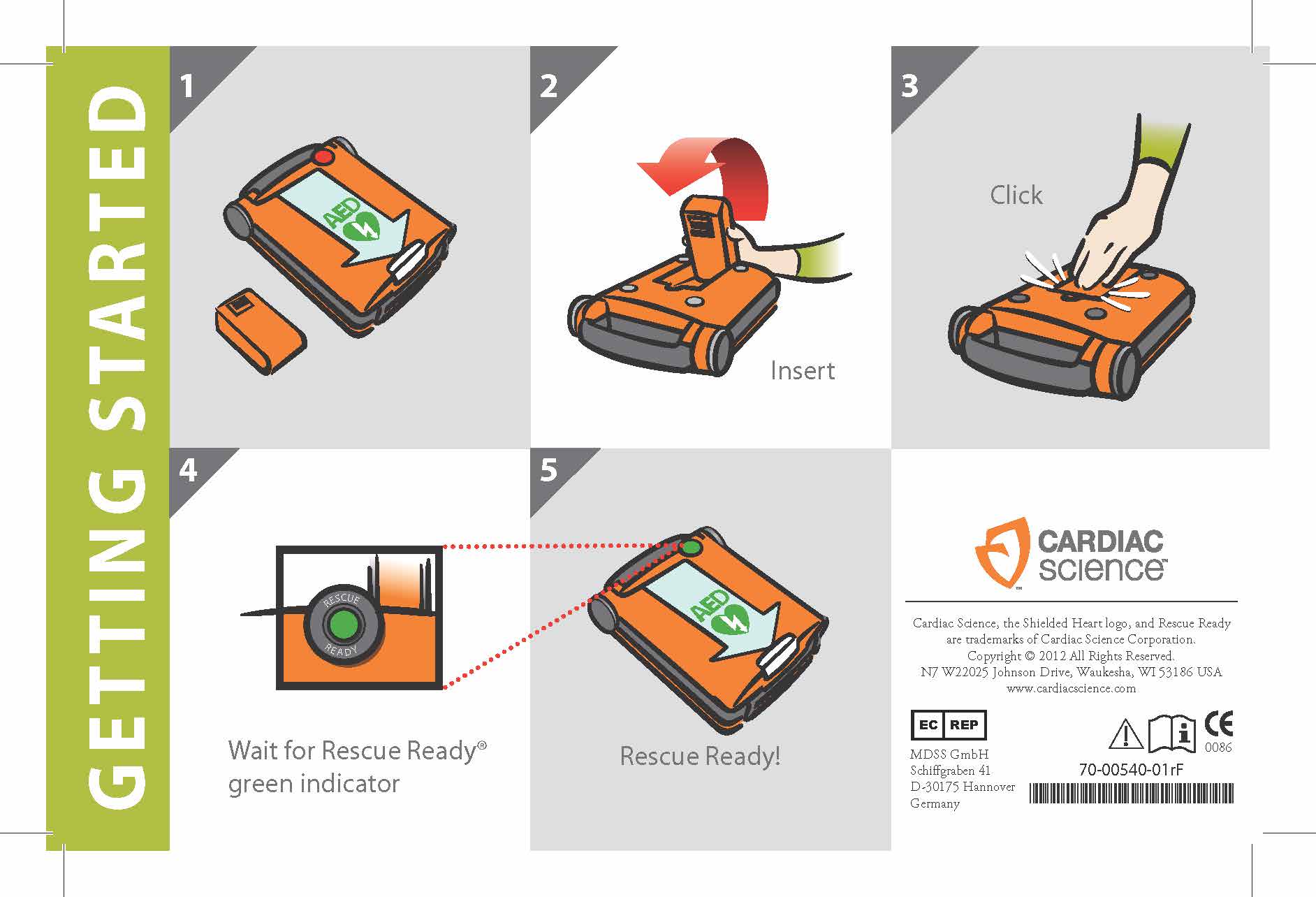

The PDF of the Getting Started card is attached to this article.
